COMING SOON

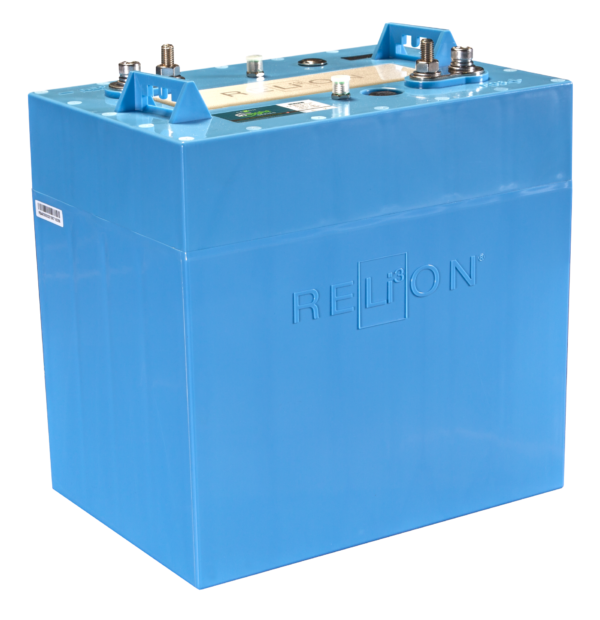

The InSight GC2 24V 60Ah lithium battery delivers high-quality performance, power and precision.
RELiON’s InSight Series batteries are the first scalable LiFePO4 drop-in replacement battery, that comes in industry-standard sizes, with no extra hardware needed when connected in parallel. They’re designed to replace lead-acid batteries in any deep cycle application, including golf carts, marine, RVs, renewable energy systems, floor machines, scissor lifts and much more.
All InSight batteries feature a SuperSmart BMS, that maximizes battery performance, even when connected in parallel, eliminating the need for an external master BMS, or any additional hardware. The innovative algorithms in the SuperSmart BMS ensures precise balancing. This optimizes performance in each battery when multiple batteries are connected in parallel, providing maximum capacity and life.
All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
*UP TO 128 PARALLEL CONNECTIONS
Intelligent battery-to-battery balancing
Additive continuous and peak currents
No additional hardware needed
*HEATSINK DESIGN
Strategically located
Unique passive cooling
Prevents over-heating of critical components
*LED INDICATOR
Provides State of Charge (SOC)
*Dual M8 Terminals (insert and Stud)
*Unique BMS Design
Microcontroller-based design
Innovative protection algorithms
MOSFET-based for ultra-fast response times
High-resolution internal measurements
Ultra-low self-consumption
Non-volatile historical data
CANbus communication
PRODUCT SPECIFICATIONS
Voltage: 25.6V
Amp Hours: 60Ah
DIMENSIONS & WEIGHT
Length: 10.2 in (260 mm)
Width: 7.1 in (180 mm)
Height: 10.9 in (276 mm)
Weight: 26.5 lbs (12 kg)
APPLICATIONS
AWP
Backup Power
Floor Machines
Marine
Recreational Vehicles
Solar
