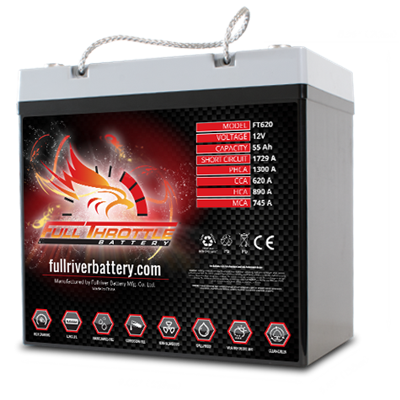

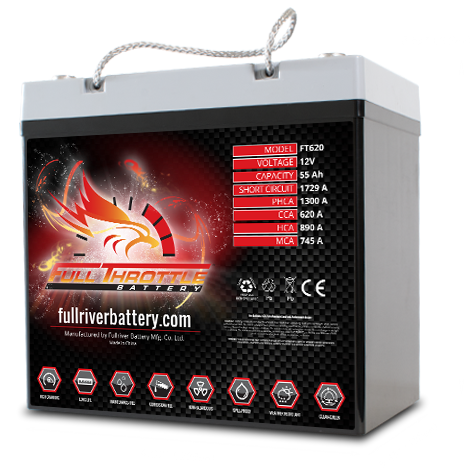

FT620-51 High Capacity Dual Purpose AGM Battery
NOTE:
As the authorized Fullriver Ontario Distributor and to prevent competitor perusal, Total Battery restricts the display of it's Fullriver products prices on our website.
For an authorized price quotation please Click Here
All requests for quotation will be processed within 24hrs eastern standard time, please indicate part, quantity required and your shipping destination for all retail and commercial quotations.
PLEASE NOTE AGM FULLRIVER BATTERIES CAN BE SHIPPED BUT HAVE ADDITIONAL SHIPPING COSTS. WE WILL ADVISE AFTER ORDER IS PLACED.
If you have any questions please contact our support.
"No one else but Full Throttle is gonna keep me charged."
In a high impact environment, you need a battery that is as tough as the rest of your vehicle.
A battery with virgin pure lead thin plates, over the partition welds, higher compression rates and valve settings, and brass terminal connections to ensure the power in your battery gets to your accessories efficiently.
You need our Full Throttle Series AGM batteries. Built to the highest standards on the market, Full Throttle is made to be put through the toughest tests - high speeds, off road, on board accessories, winches, bouncing hydraulics and booming systems - and still start your engine when it's time to head back to the garage.
With our Full Throttle AGM batteries, you'll have the power to keep all your vital accessories running hot, and the confidence of knowing your battery can handle everything you put your vehicle through - and what you put yourself through to get it just right.
Full Throttle - A Battery Built to Enhance Everything Your Ride is About
| Cycling Capacity |
|---|
| 55 Amp Hours |
| Reserve Capacity |
|---|
| 100 minutes | 17 minutes |
| Mechanical Specifications |
|---|
| 51 | | M6 | | 8.35" (212 mm) | | 8.19" (208 mm) | | 5.43" (138 mm) | | 9.02" (229 mm) | | 39.7 lbs (18 kg) | | ABS Plastic - Flame Res Rating UL94-HB |
| Discharge Table (Constant Current) |
|---|
|
| 20 hr | 2.7 | 0.05 CA | | 10 hr | 5.2 | 0.1 CA | | 8 hr | 6 | 0.13 CA | | 5 hr | 9.7 | 0.25 CA | | 3 hr | 14.2 | 0.33 CA | | 2 hr | 18.1 | 0.5 CA | | 1 hr | 32.1 | 1 CA |
| Electrical Specifications |
|---|
| 12 Volt | | 60 AH | | 55 AH | | 49 AH | | 43 AH | | 620 | | 745 | | 1729 Amps | | 7.2m Ω |
| Charge Voltages |
|---|
| Bulk | 14.7 V | 29.4 V | 44.1 V | 58.8 V | | Absorption | 14.7 V | 29.4 V | 44.1 V | 58.8 V | | Float | 13.6 V | 27.2 V | 40.8 V | 54.6 V |
| Temperature Range Specifications |
|---|
| Storage | -15°C to 50°C | -40°C to 71°C | | Operation | -15°C to 40°C | -40°C to 71°C | | Charge with TC | -15°C to 50°C | -40°C to 71°C | | Charge without TC | 0°C to 40°C | -15°C to 50°C |
| Terminal Torque Specifications |
|---|
| 4.2 - 6.2 | 50-72 | 5.6 - 7.11 | | 6.0 - 7.7 | 70-92 | 7.9 - 10.3 | | 7.1 - 8.2 | 85-97 | 9.6 - 10.9 | | 9.2 - 10.6 | 110-127 | 12.2 - 14.2 |
|
