BlueSolar PWM-LCD&USB
- Liquid Crystal Display
- Two 5 Volt USB outputs
- Lighting control function, fully programmable
- Three stage battery charging (bulk, absorption, float), fully programmable
- Load output with low voltage and manual disconnect (programmable)
- Load output protected against over load and short circuit
- Protected against reverse polarity connection of the solar panels and/or battery

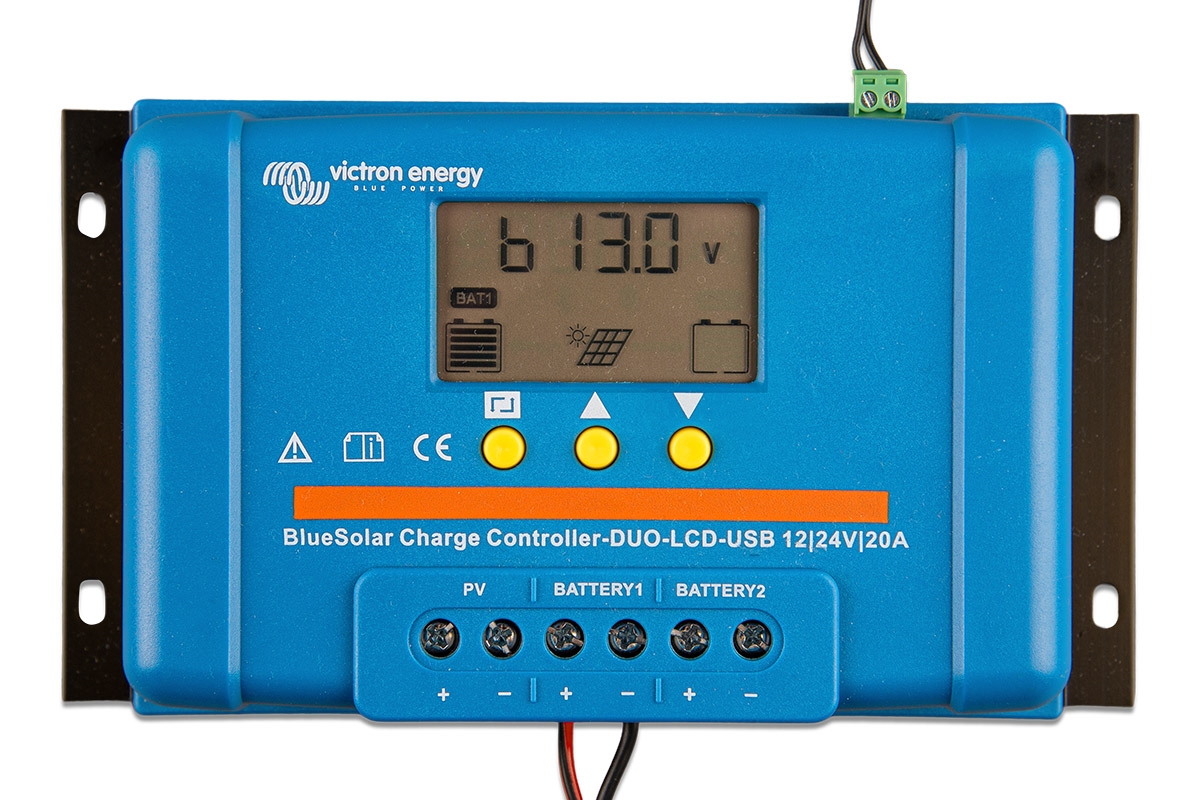

BlueSolar PWM DUO-LCD&USB
All the above-mentioned functions, plus:
- Charges two separate batteries
- Programmable charge current ratio
- External Temperature sensor
Models: 12 / 24 / 48 Volt
- Liquid crystal display. For status monitoring and set-up
- External Temperature sensor included
- 2 Separate Battery outputs. Charges two separate batteries. For example, the starter battery and
the service battery of a boat or mobile home.
- Protections. Protected against reverse polarity connection of the solar panels and/or battery
- Programmable battery charge algorithm. Algorithms for AGM, GEL or Flooded lead-acid batteries
and LiFePO4 batteries (with internal BMS).
- Two 5 Volt USB outputs. Maximum current of the two outputs combined: 2A
|
BlueSolar PWM-DUO LCD-USB
|
12/24-20
|
|
Battery Voltage
|
12/24 V with automatic system voltage detection [for LiFePO4 no automatic system voltage detection]
|
|
Rated charge current
|
20A
|
|
Second battery output
|
Yes
|
|
Load output
|
2 USB ports 5V/2A
|
|
Automatic load disconnect
|
10.5V/21V
|
|
Maximum solar voltage
|
28V / 55V (1)
|
|
Self-consumption
|
10 mA
|
|
Protections
|
Battery reverse polarity (fuse)
Over temperature
|
|
Grounding
|
Common negative
|
|
Operating temp. range
|
-35 to +55°C (full load)
|
|
Humidity (non-condensing)
|
Max 95%
|
|
DEFAULT SETTINGS
|
|
Charge voltage 'absorption' (2)
|
14.4V / 28,8V
|
|
Charge voltage 'float' (2)
|
13.7V / 27,4V
|
|
Battery temperature sensor
|
Yes, remote sensor [included]
|
|
Temperature compensation
|
-30mV/°C / -60mV/°C
|
|
ENCLOSURE
|
|
Protection class
|
IP20
|
|
Terminal size
|
16 mm2 / AWG6
|
|
Weight
|
0,3kg
|
|
Dimensions (h x w x d)
|
101.5 x 184.0 x 47.1 mm [4.0 x 7.4 x 1.8 inch]
|
|
STANDARDS
|
|
Safety
|
IEC 62109-1
|
|
EMC
|
EN 61000-6-1, EN 61000-6-3, ISO 7637-2
|
1) For 12V use 36 cell solar panels
For 24V use 72 cell solar panel or 2x 36 cell in series
2) See manual for alternative voltage settings
|
|
|
|
 |
|
 |
|
