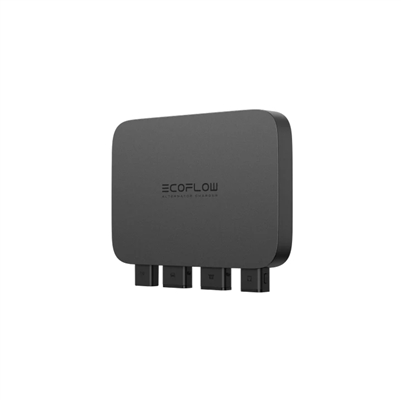

EcoFlow 800W Alternator Charger
Model
EF-FC-301-1
Net Weight
5.1 lb (2.3 kg)
Dimensions (W × D × H)
9.5×7.6×1.4 in
(242×194×35 mm)
Wi-Fi
Frequency: 2412MHz-2472MHz
Maximum output power: <20dBm
Bluetooth
Frequency: 2402MHz-2480MHz
Maximum output power: <10dBm
Charging Mode
Input: 11V-31V, 76A Max.
Output: 40V-60V, 800W Max.
Battery Maintenance Mode
Input: 40V-60V, 3A Max.
Output: 13.8V/27.6V, 100W Max.
Reverse Charging Mode
Input: 40V-60V, 21A Max.
Output: 13.8V/27.6V, 800W Max.
Fuse's Rated Current
125A
Protection Type
Reverse polarity protection
Overcurrent protection
Short circuit protection
Overvoltage protection
Undervoltage protection
Operating Temperature
–4℉ to 140℉ (–20℃ to 60℃)
Storage Temperature
–22℉ to 158℉ (–30℃ to 70℃)
Operating Humidity
≤95%
Storage Humidity
